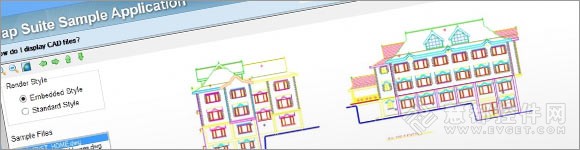

地理信息系统Map Suite为响应广大用户的需求，在最新版中新增CAD (*.dwg、*.dxf)图形显示功能！使用Map Suite 7.0.46.0及以上版本中包含的新的CadFeatureLayer，可以将CAD图形以及图形样式（无论是图形自带还是你自定义的样式均可）嵌入到你的地图中。

以下示例代码介绍了在Map Suite项目中如何使用CadFeatureLayer。该示例运行的前提是必须安装7.0.46.0版本的Map Suite。CadFeatureLayer适用于任何版本的Map Suite，包括WPF Desktop Edition、WinForms Desktop Edition、Web Edition、MVC Edition和Silverlight Edition。

说明：以下代码全部基于C#开发语言，如果你想使用其他的开发语言，你可以自行下载一个免费工具进行代码转换。

    using System;

    using System.Drawing;

    using System.IO;

    using System.Windows.Forms;

    using ThinkGeo.MapSuite.Core;



    public partial class Sample : Form

    {

        private MapEngine mapEngine;

        private Bitmap bitmap;

        private RectangleShape fullExtent;



        public Sample()

        {

            InitializeComponent();

        }



        private void DisplayASimpleMap_Load(object sender, EventArgs e)

        {

            mapEngine = new MapEngine();

            mapEngine.ShowLogo = true;



            string[] dwgFiles = Directory.GetFiles(@"..\..\Data\");

            foreach (string dwgFile in dwgFiles)

            {

                sampleFileListBox.Items.Add(Path.GetFileName(dwgFile));

            }

            // Display the first file in the list

            sampleFileListBox.SelectedIndex = 0;

        }



        private void sampleFileListBox_SelectedIndexChanged(object sender, EventArgs e)

        {

            CadFeatureLayer layer = new CadFeatureLayer(@"..\..\Data\" + sampleFileListBox.SelectedItem.ToString());



            // Render the data using embedded style in the CAD file

            if (radioButtonEmbeddedStyle.Checked)

            {

                layer.StylingType = CadStylingType.EmbeddedStyling;

            }

            // Render the data using a customized style

            else

            {

                layer.StylingType = CadStylingType.StandardStyling;

                layer.ZoomLevelSet.ZoomLevel01.DefaultLineStyle = LineStyles.CreateSimpleLineStyle(GeoColor.SimpleColors.Black, 2, true);

                layer.ZoomLevelSet.ZoomLevel01.DefaultPointStyle = PointStyles.CreateSimplePointStyle(PointSymbolType.Circle, GeoColor.SimpleColors.Blue, 8);

                layer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.CreateSimpleAreaStyle(GeoColor.SimpleColors.Yellow);

                layer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

            }



            mapEngine.StaticLayers.Clear();

            mapEngine.StaticLayers.Add(layer);



            Cursor = Cursors.WaitCursor;

            layer.Open();

            fullExtent = ExtentHelper.GetDrawingExtent(layer.GetBoundingBox(), map.Width, map.Height);

            mapEngine.CurrentExtent = fullExtent;

            DrawImage();

            Cursor = Cursors.Default;

        }



        private void radioButtonStandardStyle_CheckedChanged(object sender, EventArgs e)

        {

            CadFeatureLayer layer = ((CadFeatureLayer)mapEngine.StaticLayers[0]);

            if (radioButtonStandardStyle.Checked)

            {

                layer.StylingType = CadStylingType.StandardStyling;

                layer.ZoomLevelSet.ZoomLevel01.DefaultLineStyle = LineStyles.Equator1;

                layer.ZoomLevelSet.ZoomLevel01.DefaultPointStyle = PointStyles.City7;

                layer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.Country1;

                layer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

            }

            else

            {

                layer.StylingType = CadStylingType.EmbeddedStyling;

            }

            DrawImage();

        }



        private void DrawImage()

        {

            bitmap = new Bitmap(map.Width, map.Height);

            mapEngine.OpenAllLayers();

            mapEngine.DrawStaticLayers(bitmap, GeographyUnit.Meter);

            mapEngine.CloseAllLayers();



            map.Image = bitmap;

        }



        private void ToolBar_ButtonClick(object sender, ToolBarButtonClickEventArgs e)

        {

            switch (e.Button.Tag.ToString())

            {

                case "Zoom In":

                    mapEngine.CurrentExtent.ScaleDown(50);

                    break;

                case "Zoom Out":

                    mapEngine.CurrentExtent.ScaleUp(50);

                    break;

                case "Full Extent":

                     mapEngine.CurrentExtent = fullExtent;

                    break;

                case "Pan Left":

                    mapEngine.CurrentExtent = ExtentHelper.Pan(mapEngine.CurrentExtent, PanDirection.Left, 20);

                    break;

                case "Pan Right":

                    mapEngine.CurrentExtent = ExtentHelper.Pan(mapEngine.CurrentExtent, PanDirection.Right, 20);

                    break;

                case "Pan Up":

                    mapEngine.CurrentExtent = ExtentHelper.Pan(mapEngine.CurrentExtent, PanDirection.Up, 20);

                    break;

                case "Pan Down":

                    mapEngine.CurrentExtent = ExtentHelper.Pan(mapEngine.CurrentExtent, PanDirection.Down, 20);

                    break;

                default:

                    break;

            }

            DrawImage();

        }



        private void map_ClientSizeChanged(object sender, EventArgs e)

        {

            if (map.Width > bitmap.Width || map.Height > bitmap.Height)

            {

                bitmap = new Bitmap(map.Width, map.Height);

                double scale = new ZoomLevelSet().GetZoomLevel(mapEngine.CurrentExtent, map.Width, GeographyUnit.Meter).Scale;

                mapEngine.CurrentExtent = ExtentHelper.SnapToZoomLevel((RectangleShape)mapEngine.CurrentExtent.CloneDeep(), GeographyUnit.Meter, map.Width, map.Height, new ZoomLevelSet());

                mapEngine.CurrentExtent = ExtentHelper.ZoomToScale(scale, mapEngine.CurrentExtent, GeographyUnit.Meter, map.Width, map.Height);

                DrawImage();

            }

        }

    }
